YG RC Drilling Rig

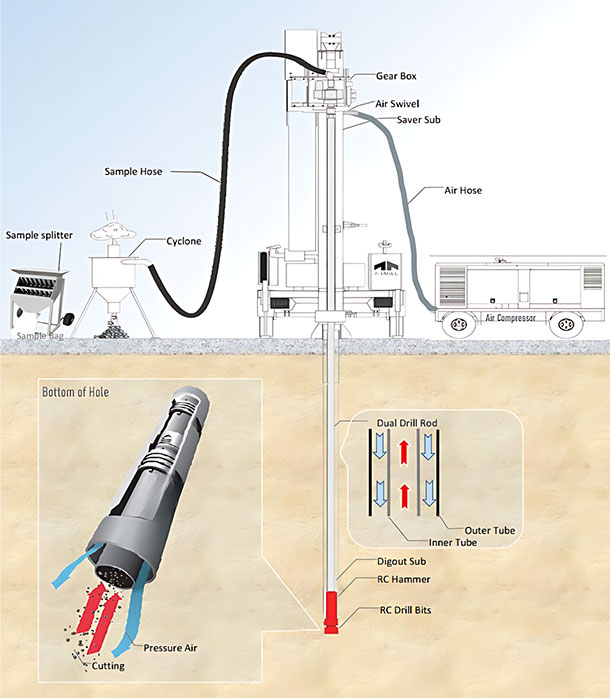

RC drilling uses a dual-wall drill pipe system (outer pipe + inner tube). Compressed air drives a tungsten carbide hammer bit to crush rock formations. Unlike diamond drilling, RC collects rock cuttings (not core samples).
How It Works:
1
The pneumatic hammer repeatedly strikes the bit, breaking hard rock.
2
Air pressure creates reverse circulation, forcing cuttings up through the inner tube.
3
Cuttings exit via a hose into a cyclone separator for sampling.
4
Bagged samples (labeled with depth/location) go directly to the lab.
Main Sale Model

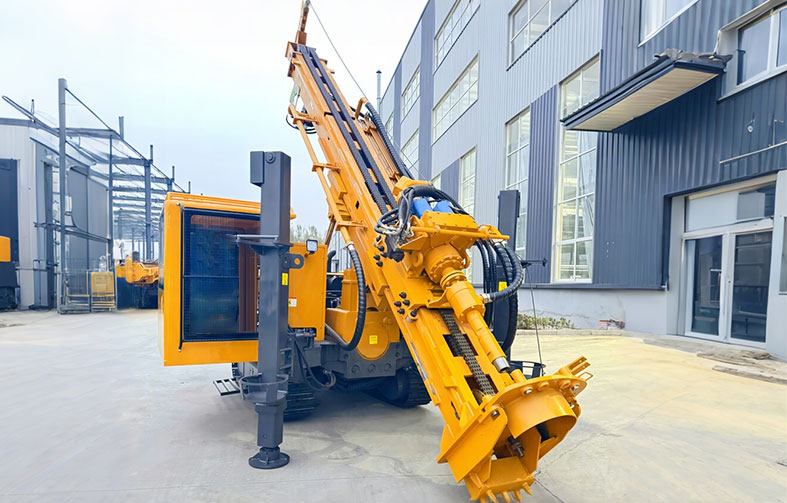

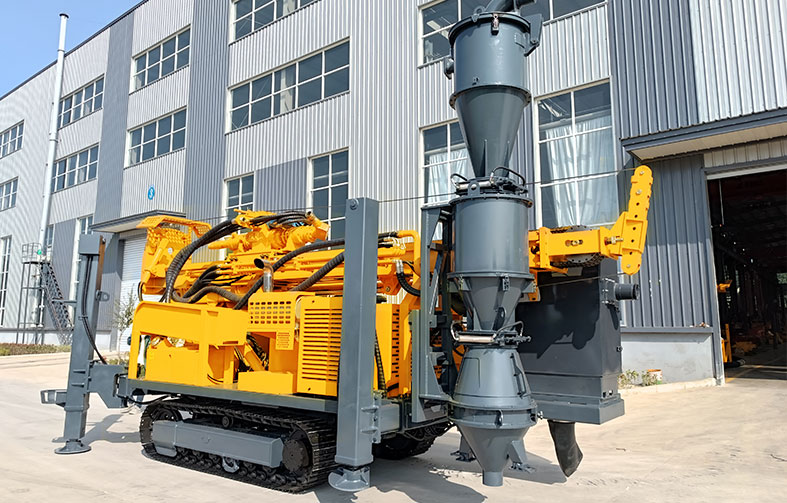

YG 400 Reverse Circulation Drilling Rig
Max drilling depth: 400m
Drilling diameter: 105-400mm
Gas consumption: 16-55
Fast forward speed: 23
Overall dimensions: 7*2.1*2.8
Get a Quote
YG 800 Reverse Circulation Drilling Rig
Max drilling depth: 800m
Drilling diameter: 105-600mm
Gas consumption: 16-96
Fast forward speed: 42
Overall dimensions: 10.5.*2.25*3.3
Get a Quote
Applicable scenarios

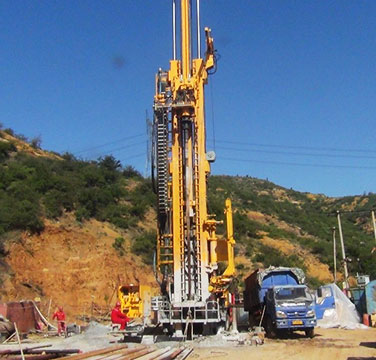

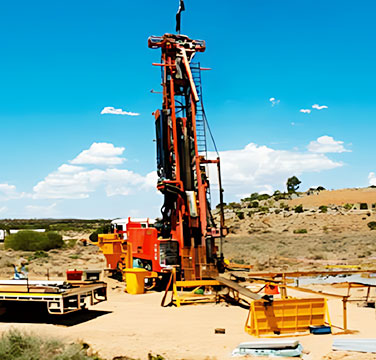

Versatile reverse circulation rigs adapt to soft soils, sandstone, clay, and complex strata. Ideal for geotechnical surveys, mining, and foundation projects, delivering stable drilling and efficient coring.

Product Advantages
Stable Drilling
Compensation cylinders ensure firm ground contact for maximum rigidity and drilling stability.
Precise Alignment
Patented centering device with level gauge guarantees accurate hole positioning every time.
Thread Protection
Self-compensating sliding plate prevents thread wear, extending pipe life and cutting costs.
Clean Air Supply
High-efficiency pre-filter removes 90% dust automatically, protecting the engine in harsh conditions.
Efficient Rod Handling
Hydraulic wrench and hoist enable quick, safe rod changes with minimal labor.
Optimal Lubrication
Special oil-mist system maintains hammer performance while extending service life.
Get a Quote
Supporting Equipment
High-efficiency modular system with smart control, wear-resistant components, and eco-efficient dust suppression. Ideal for mining/hard-rock drilling, ensuring rapid setup, low downtime, and compliance with environmental standards.

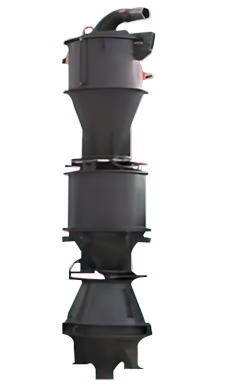

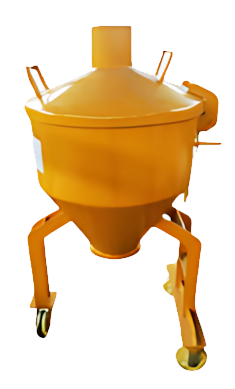

Cyclone Separator

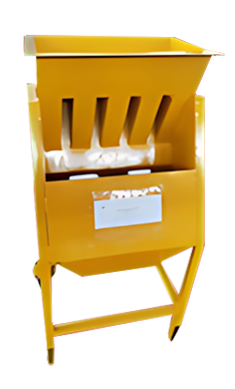

Sample Separator

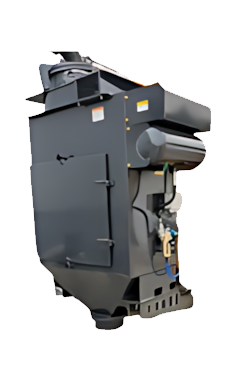

Dust Collector
Integrated Cyclone Sampler

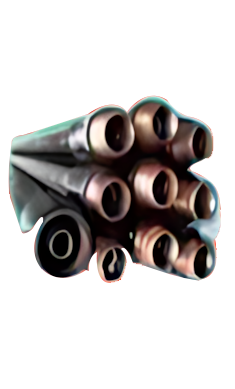

Double-arm Drill Pipe
